The 240SX is a sports car that was introduced to the North American market by Nissan in 1988 for the following model year (1989). It has a tremendous cult following and this is a page archiving some of the more popular mods to the car.

16 Questions View all

How do I install turbo lines and fittings on my SR20DET?

How do I install the turbo lines and fittings on my SR20 motor?

Answer this question I have this problem too

Is this a good question?

Score 0
Add a comment

1 Answer

Many first time SR20DET owners receive their motor with missing or removed items. They may not know where certain pieces go and this is the same for turbo lines. The hardlines can be difficult to route because it can start to look like a maze to some people. We have created this guide so that people using stock hardlines or aftermarket braided lines can make installation easier.

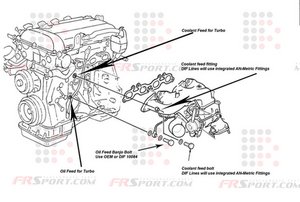

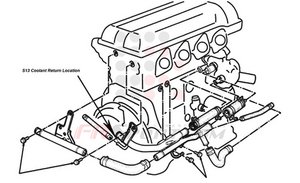

The engine below is pictured for the S13 SR20DET.

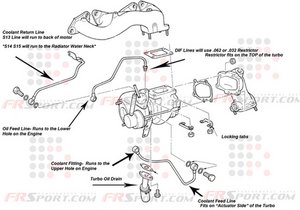

S14 & S15 SR20DET engines have will have the Coolant Return Line to the Radiator Water Neck

Block Image

Block Image

Block Image

Block Image

Block Image

Block Image

Was this answer helpful?

Score 0
Add a comment

Add your answer

Nicole will be eternally grateful.
