  1. Before starting work on the car; make sure the car is secure on the lift or jack stands Remove the 2 12mm bolts hold the BOV in place Remove the 10mm bolts holding the black hard line in place
    • Before starting work on the car; make sure the car is secure on the lift or jack stands

    • Remove the 2 12mm bolts hold the BOV in place

    • Remove the 10mm bolts holding the black hard line in place

    • Take off the BOV and leave the hard line loosely in place

  2. Remove the sound tube bracket as there is a mounting bolt underneath on the passenger side of the car All the other bolts are fairly accessible; recommend to use deep sockets and various length socket extenstions There are 2 more mounting bolt on the rear of the intercooler that must be removed; it is NOT pictured
    • Remove the sound tube bracket as there is a mounting bolt underneath on the passenger side of the car

    • All the other bolts are fairly accessible; recommend to use deep sockets and various length socket extenstions

    • There are 2 more mounting bolt on the rear of the intercooler that must be removed; it is NOT pictured

  3. Loosen hose clamps on the silicone coupler for the Turbo and Throttle body Using a flat head screw driver carefully loosen the couplers You can use a 90deg pick and run it around the outside edges of the coupler help free it

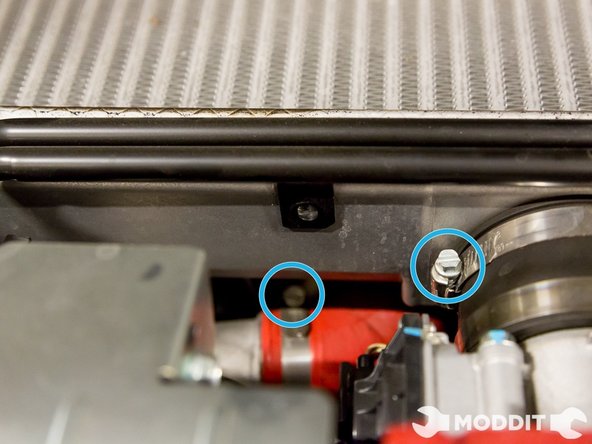

    • Loosen hose clamps on the silicone coupler for the Turbo and Throttle body

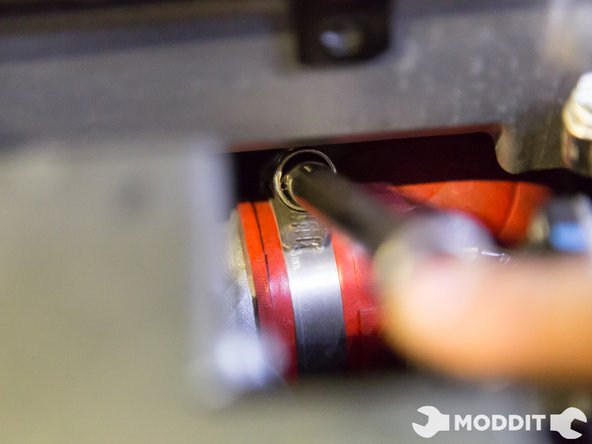

    • Using a flat head screw driver carefully loosen the couplers

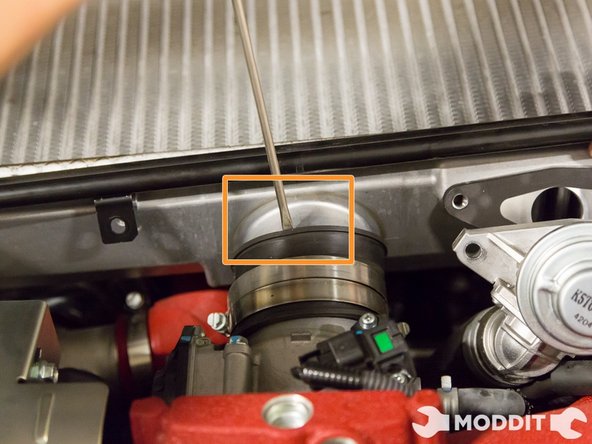

    • You can use a 90deg pick and run it around the outside edges of the coupler help free it

    • Silicone spray is also very helpful

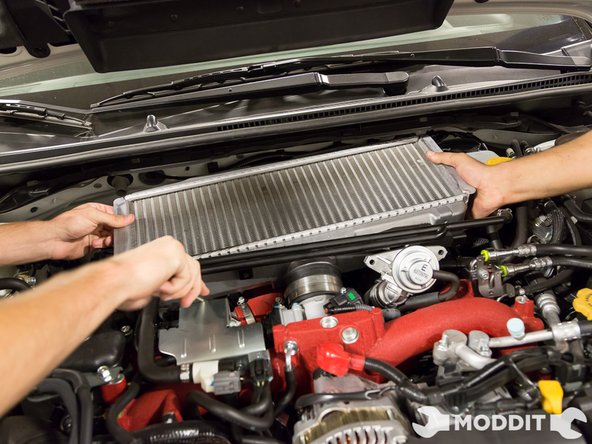

  4. Carefully remove the intercooler some wiggling will be required Carefully remove the intercooler some wiggling will be required Carefully remove the intercooler some wiggling will be required

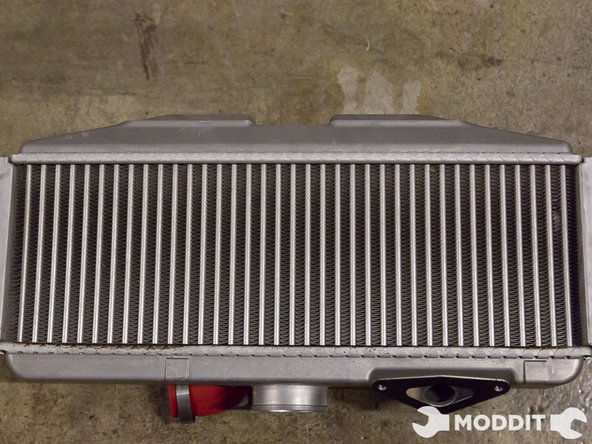

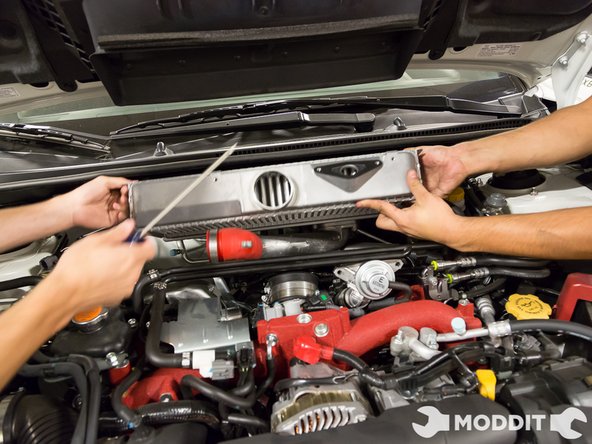

    • Carefully remove the intercooler some wiggling will be required
