How to Install Front and Rear Raceseng Tow Hooks

Written By: Ruthie (and 2 other contributors)
  • Comments: 0
  • Favorites: 0
  • Completions: 1

Difficulty

Very easy

Steps

8

Time Required

00:10:00 - 00:15:00

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

Introduction

This guide will show the quick installation of the front and rear tow hooks from Raceseng. These tow hooks also have Go Pro mounts integrated into them, so that makes front and rear video captures feasible.

  1. This first part of the write up is for the Front tow hook. Use a flat head screw driver to remove the plastic plate covering the tow hook hole. Then use your finger to push out the hook that hangs the cover.

    • This first part of the write up is for the Front tow hook.

    • Use a flat head screw driver to remove the plastic plate covering the tow hook hole.

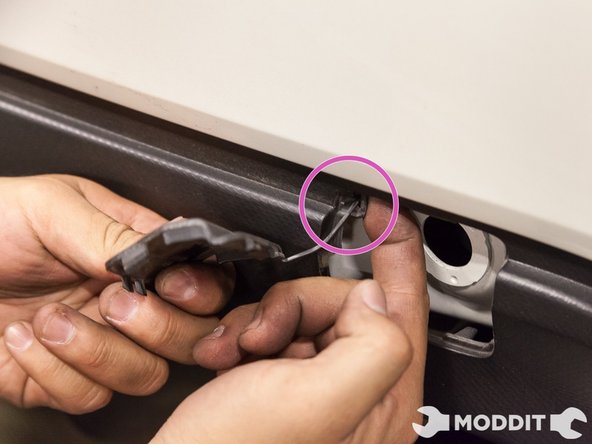

    • Then use your finger to push out the hook that hangs the cover.

    Edit

  2. Use anti-seize on the thread end of the tow hook. Before you install the whole assembly, remove tow hook loop, and then install the assembly into the tow hook hole. Before you install the whole assembly, remove tow hook loop, and then install the assembly into the tow hook hole.

    • Use anti-seize on the thread end of the tow hook.

    • Before you install the whole assembly, remove tow hook loop, and then install the assembly into the tow hook hole.

    Edit

  3. Apply blue thread locker to the set screw. Then place the set screw inside using a 1/4" allen key wrench.

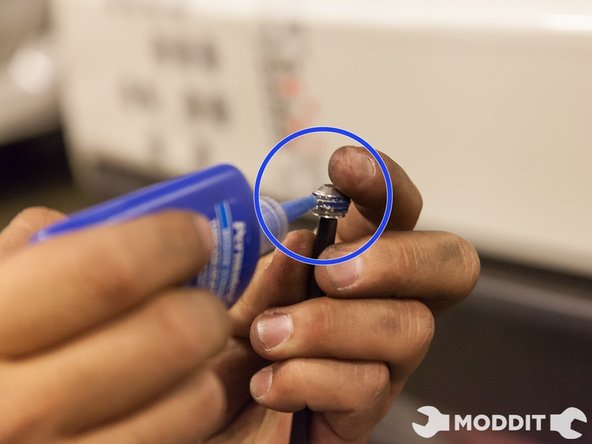

    • Apply blue thread locker to the set screw.

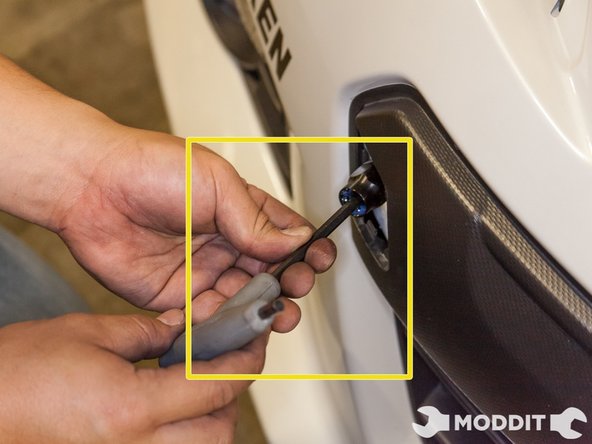

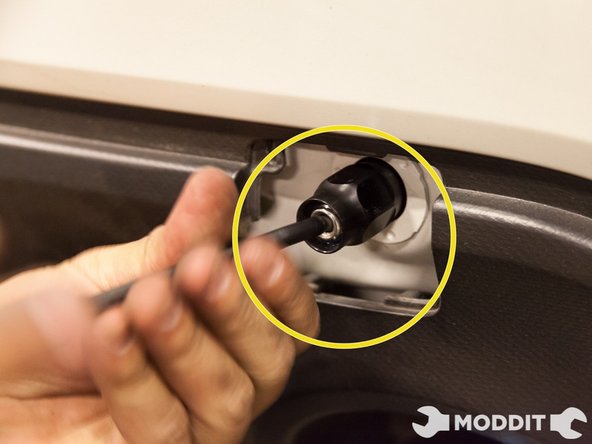

    • Then place the set screw inside using a 1/4" allen key wrench.

    Edit

  4. Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer. Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer.

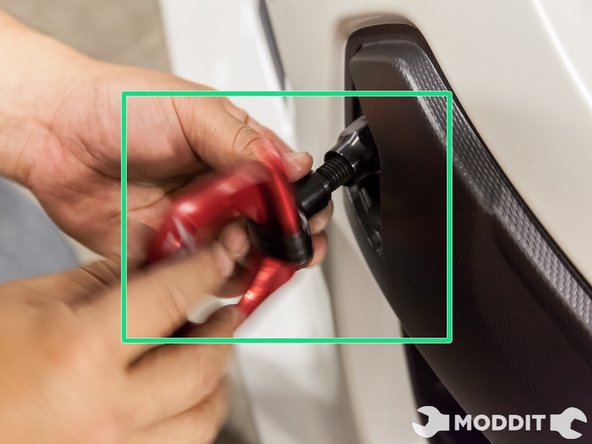

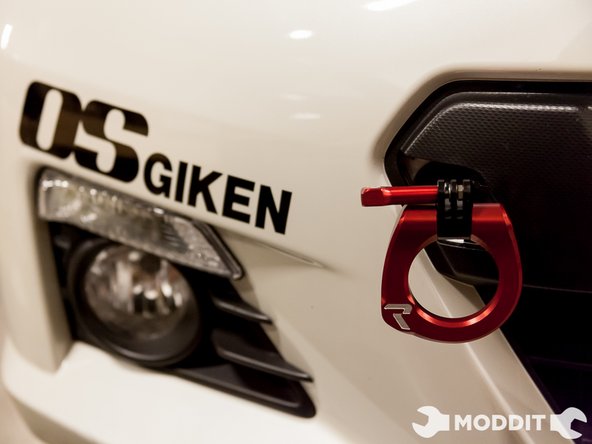

    • Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer.

    Edit

  5. The second part of the write up will be the rear tow hook. Just like the front tow hook, the rear will be pretty much exactly the same. Use a flat head screw driver to remove the plastic plate covering the tow hook hole. Then use your finger to push out the hook that hangs the cover.

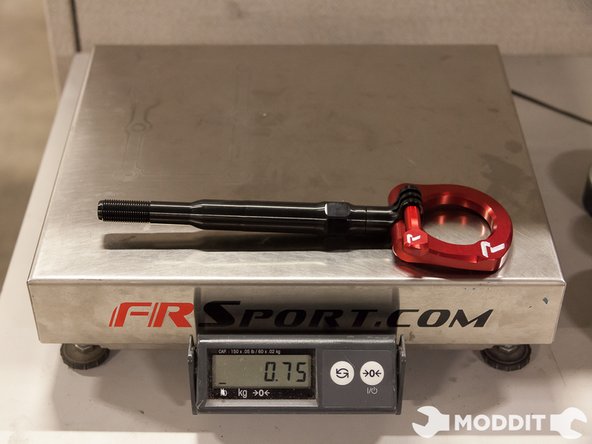

    • The second part of the write up will be the rear tow hook. Just like the front tow hook, the rear will be pretty much exactly the same.

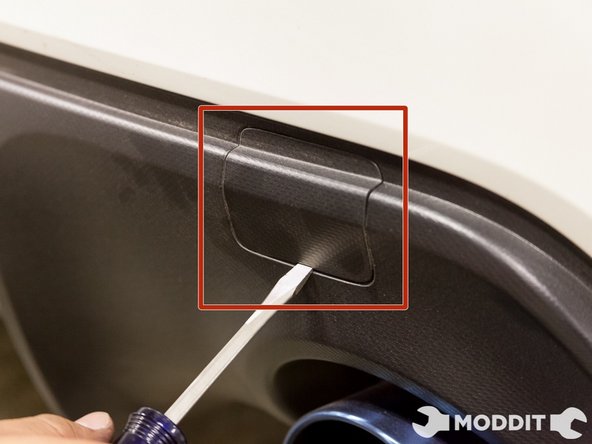

    • Use a flat head screw driver to remove the plastic plate covering the tow hook hole.

    • Then use your finger to push out the hook that hangs the cover.

    Edit

  6. Use anti-seize on the thread end of the tow hook. Remove tow hook loop, and then install the assembly into the tow hook hole.

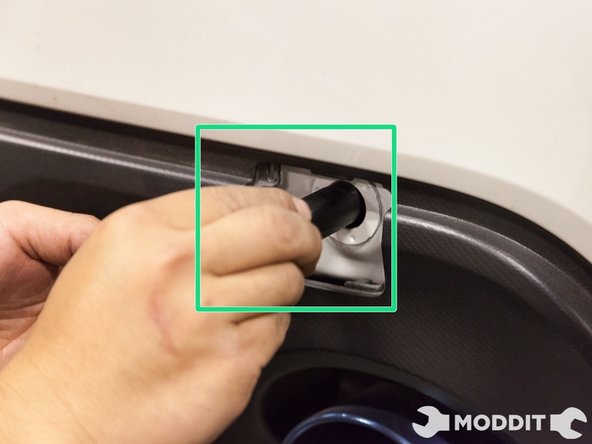

    • Use anti-seize on the thread end of the tow hook.

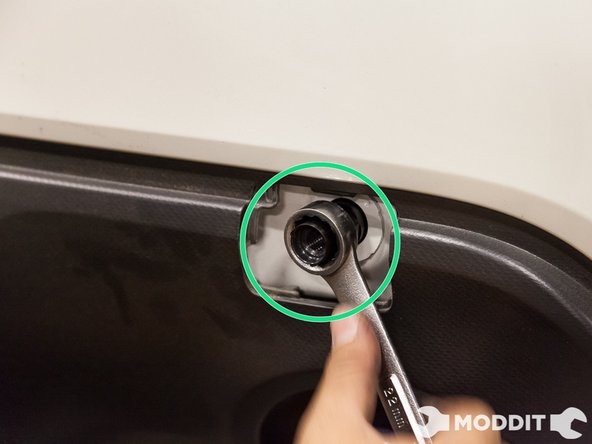

    • Remove tow hook loop, and then install the assembly into the tow hook hole.

    Edit

  7. Apply blue thread locker to the set screw. Then place the set screw inside using a 1/4" allen key wrench.

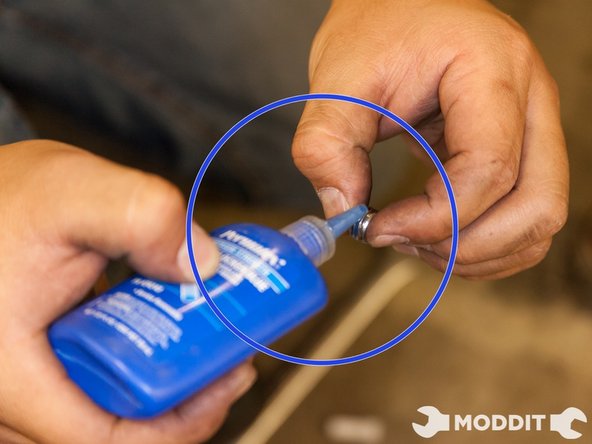

    • Apply blue thread locker to the set screw.

    • Then place the set screw inside using a 1/4" allen key wrench.

    Edit

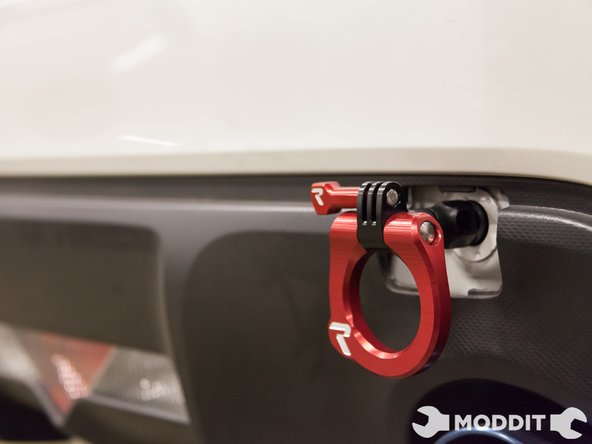

  8. Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer. Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer.

    • Using the set screw to adjust the direction of the tow hook, Install the tow hook in until it faces the direction you prefer.

    Edit
Conclusion

This is a great addition to the exterior look of the car. These tow hooks are very functional as well, just in case we break down at the track or we want to take video footage from that angle.
